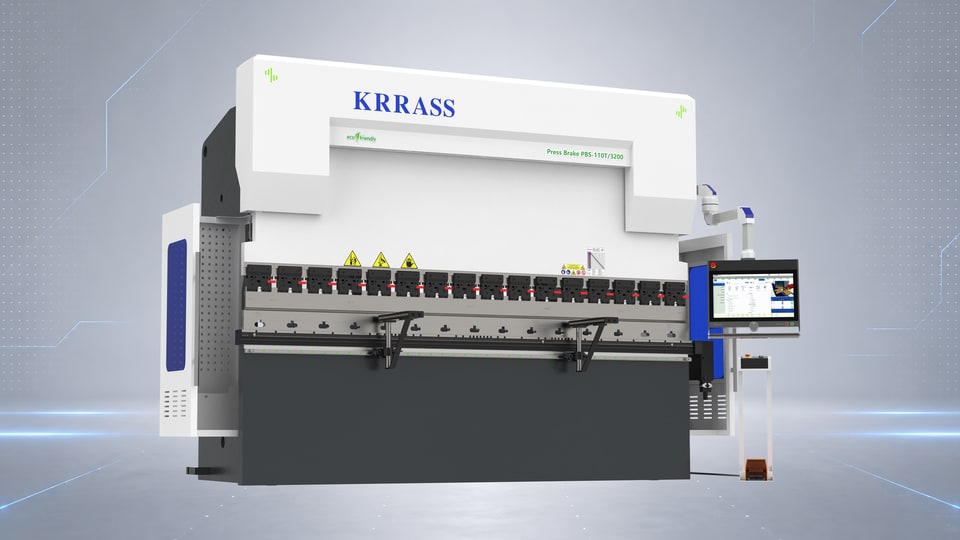

AdvancedBend
Precision press brake engineering for repeatable bends, controlled motion, and measurable shop-floor performance.
Measured Precision
For Production
Critical systems are selected around repeatability, closed-loop control, and stable bending results across long production runs.
Closed-Loop Hydraulics
Rexroth proportional valve control keeps pressure, flow, position, and force under stable feedback.
Back Gauge Accuracy
Ball screws and linear guides support consistent finger positioning for complex part geometry.
Energy Efficiency
Hybrid servo ECO operation reduces idle energy use while preserving high dynamic response.
Angle Correction
Laser-assisted angle measurement supports automatic correction after the first bend.
CNC Control System
Advanced control options help operators manage bending programs, angle accuracy, backgauge movement, and repeatable production.
Dynamic Source
High-Efficiency Servo Motor
Servo-driven power control helps reduce idle energy consumption, improves response speed, and supports smoother bending cycles for precision production.
Reliable AC Motor
A conventional AC motor configuration provides stable power output, simple maintenance, and dependable performance for daily sheet metal bending operations.
BG-2
X+R Axis
BG-4
X+R+Z1+Z2 Axis
BG-6
X1+X2+R1+R2+Z1+Z2 Axis
Back Gauge System
From standard 4+1 axis to advanced 8+1 axis configurations, every stopfinger can be independently programmed for complex part geometries.
Practical two-axis positioning
BG-2 is suitable for standard bending jobs that require reliable X-axis positioning and R-axis height adjustment. It is a practical choice for daily production, common part geometries, and factories that need stable positioning without unnecessary axis complexity.
Flexible positioning for varied parts
BG-4 adds independent Z1 and Z2 movement, allowing the stopfingers to adapt to different flange widths and part shapes. It is better suited for mixed production, frequent setup changes, and parts that need more flexible positioning support.
Advanced multi-axis control
BG-6 provides independent control across X1, X2, R1, R2, Z1, and Z2 axes. It is designed for complex geometries, asymmetric workpieces, higher positioning accuracy, and production scenarios where each stopfinger may need independent programming.
Safety Protection
Comprehensive safety solutions to protect operators and ensure compliance with international safety standards.
Light Curtain
Infrared light curtain safety system provides full-length protection along the bending zone. Instantly halts ram movement when the safety field is breached, ensuring operator safety during every cycle.
Laser Protection
Laser-based safety device mounted on the ram provides a narrow detection zone close to the tooling point. Allows faster approach speeds while maintaining the highest level of operator protection.
Automatic
Crowning System
The intelligent deflection compensation system automatically calculates and applies the optimal crowning curve across the full bending length. Whether hydraulic or CNC-motorized, it guarantees consistent angles from edge to edge.
Real-Time Crowning
Multi-point deflection compensation calculated per stroke
Edge-to-Edge Accuracy
Consistent angle across full length, zero manual shimming
Upgrade Options
Pneumatic follow-up support arms automatically track the workpiece, preventing scratches and deformation on large or thin sheets.
Real-time angle measurement with automatic springback compensation for perfect bending accuracy on every cycle.
High-visibility laser line projection for accurate workpiece positioning, reducing setup time and operator error.
Hydraulic clamping system enables tool changes in under 3 minutes, boosting production flexibility and uptime.
Precision Press Brake Tooling
A complete range of punches, dies, and clamping systems from KRRASS.
Punches & Dies
Gooseneck, acute, radius, hemming, multi-V — 58-62 HRC hardened.
Quick-Clamp Systems
Tool changes under 3 min. WILA, Amada, Euro compatible.
±0.01mm Precision
CNC precision-ground for repeatable bending angles.
Specifications
All models at a glance — compare side by side
Ready to
Master Your
Production?
Get a personalized quote tailored to your exact specifications. Our engineering team will help you configure the perfect solution for your production needs.
