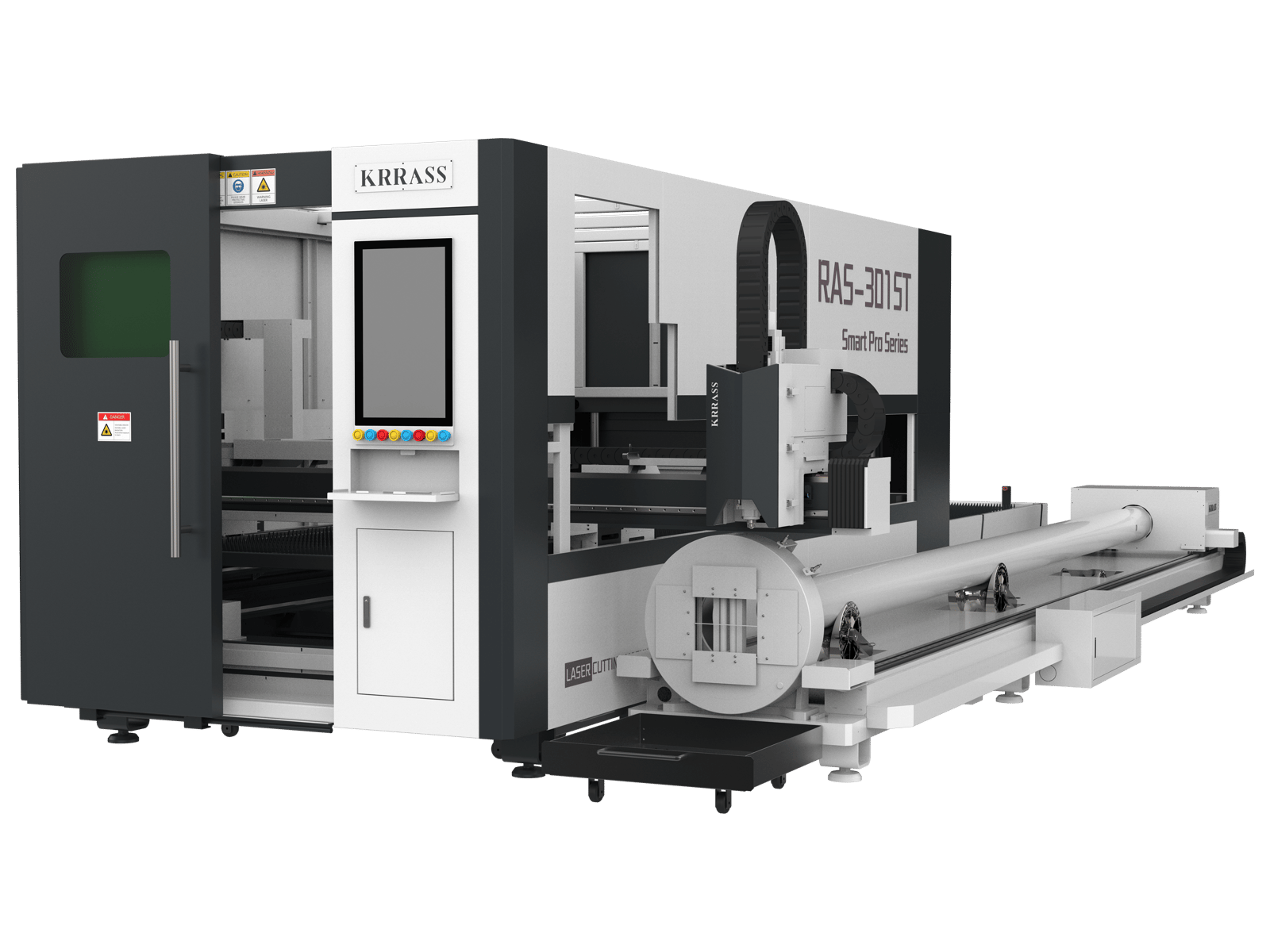

Tub Plus Cut
Enclosed plate and tube fiber laser cutting with an exchange worktable. Built for safer operation, cleaner processing, and flexible production flow.
Measured Precision
For Production
Tub Plus Cut combines enclosed production flow, exchange table efficiency, and plate-tube processing accuracy for mixed fabrication work.
Maximum Speed
Fast motion supports efficient plate cutting, tube processing setup, and shorter production cycles.
Fast Axis Response
Responsive acceleration supports agile contour following and rapid movement between cuts.
Positioning Accuracy
X/Y axis positioning accuracy of +/-0.05 mm/m helps maintain dependable edge quality across sheet and tube jobs.
Repeat Positioning
X/Y repeated positioning accuracy of +/-0.02 mm keeps repeated parts consistent across production runs.
MAX Fiber Laser Source
MFSC-12000C Single-Module CW Fiber Laser
A 12000W MFSC-series continuous fiber laser source for high-power sheet metal cutting. Its single-module architecture supports dense beam delivery, stable long-run output, and efficient integration for workshops processing medium and thick plates.
MFSC-6000C Single-Module CW Fiber Laser
A 6000W single-module continuous fiber laser source for demanding metal cutting, drilling, and welding. It suits new energy, 3C, and precision manufacturing lines that need higher power density, stable beam delivery, and reliable thick-plate processing.
MFSC-3000C Single-Module CW Fiber Laser
A 3000W MFSC-series source built for continuous industrial cutting and welding work. The high-efficiency single-mode platform supports drilling, sheet cutting, welding, cladding, brazing, and surface heat treatment with adjustable output for process control.
Bochu EtherCAT Controller
Bochu FSCUT EtherCAT control systems connect motion, laser, cutting gas, nesting, and process parameters for stable sheet metal production.
BOCI Cutting Head
BLT 442S
High-Power 2D Cutting
BLT 421
Medium-Power 2D Cutting
BLT 310
Low-Mid Power Cutting
Tub Plus Cut can be paired with Bochu BOCI intelligent cutting heads for stable focus control, process monitoring, and reliable fiber laser cutting performance.
High-power cutting head option
A BLT4-series cutting head choice for higher-power sheet cutting setups, focused on stable beam delivery, quick setup, and consistent daily production.
Balanced 2D cutting performance
Designed for flat sheet fiber laser cutting, with autofocus support, practical optical protection, and maintainable consumable structure for routine service.
Compact intelligent cutting head
A cost-effective, lightweight BLT3-series head for small and medium power cutting, with sensor monitoring, fast diagnosis, and collision protection.
Fully Enclosed Machine Body
Tub Plus Cut uses a fully enclosed body to contain sparks, smoke, and cutting spatter during sheet metal processing. The enclosed layout supports cleaner workshop operation, safer observation, and more controlled fume extraction around high-power cutting jobs.
Safer Enclosed Cutting
Body panels help isolate sparks, spatter, and active cutting areas
Cleaner Fume Control
The enclosure supports directed extraction and cleaner operation
Pneumatic Clamping & Support
Tub Plus Cut adds pneumatic tube clamping and roller support for stable pipe processing on the same plate cutting platform.
The Pipe Clamping Range is Wide
The pipe clamping range of the Laser Tube Cutting Machine is vast, the Round tube is Φ10-Φ10, and the square tube side length is 10 * 10mm-220mm * 220mm. Support the cutting of various shapes of pipe materials, such as I-beam, channel steel, angle steel, elliptical pipe, waste pipe, multi-deformed pipe, Etc.
Pneumatic roller support
When the Tube Plate Fiber Laser Cutting Machine works, it can fix the pipe and effectively solves the deformation problem in the cutting operation of the long line.
Double Pneumatic Chucks, Ultra-short Tailing
The front and rear of Pipe Fiber Laser Cutting Machine chucks are featured by automatic centering and dual-driven rotation, keeping them synchronous. The front chuck is full-stroke, and cutting tailing is further shortened to 50mm by front chuck avoidance cutting.
Exchange Worktable
The dual worktable structure separates loading and cutting positions, allowing one table to prepare material while the other remains in production. This exchange workflow reduces idle time, improves loading safety, and keeps batch cutting more continuous.
Table Exchange Flow
Two worktables alternate between loading and cutting positions
Reduced Idle Time
Material preparation can continue while cutting is in progress
Precision Motion Control
Tub Plus Cut pairs rigid mechanical transmission with responsive servo motion to support accurate positioning, smooth acceleration, and flexible contour cutting across different sheet sizes and production jobs.
Taiwan YYC rack and pinion components support precise linear transmission with low vibration and controlled backlash, helping the cutting gantry keep repeatable motion over long travel.
Taiwan HIWIN linear guides provide smooth, high-accuracy guidance and strong load capacity, giving the X/Y axes a stable foundation for fine contour cutting.
Inovance servo motors drive the X and Y axes with responsive control, high-resolution feedback, and synchronized gantry motion for flexible acceleration and positioning.
Motoreducer planetary reducers are selected for precise servo transmission, strict quality control, and reliable torque output, helping the axis system keep stable motion under daily cutting loads.
Gas Pressure Management
Tub Plus Cut uses Japanese SMC electro-pneumatic regulation to deliver stable, step-free assist gas pressure for air, nitrogen, and oxygen cutting processes.
Step-free Gas Control
Gas pressure is adjusted proportionally by electric signal, helping operators match output to material and process needs.
Fine SMC Regulation
SMC regulator sensitivity reaches 0.2 kPa on the 100 kPa specification, supporting precise pressure tuning.
Stable Process Response
Linearity is within +/-1% F.S. and hysteresis within 0.5% F.S. for reliable pressure response during cutting.
Electro-pneumatic Regulator
Thermal Management
Tub Plus Cut combines dedicated laser water cooling with electrical cabinet climate control to keep the laser, optics, and CNC electronics operating in a stable temperature environment.
Laser Water Chiller Series
S&A TEYU laser water chillers support fiber laser processing with dedicated temperature control for the laser and optics, intelligent digital operation, reliable water circulation, and communication capability for integration with the laser system.
Electrical Cabinet Cooling Unit
Tongfei MCA enclosure cooling separates internal and external air circulation to block dust, oil mist, and moisture while managing cabinet temperature and humidity. It supports protection alarms, RS485 communication, optional PTC heating, and wall-mounted, embedded, or door-mounted installation.
Upgrade Options
Upgrade to IPG industrial fiber laser technology for excellent beam quality, high power density, and faster precision processing with reduced heat input.
Raycus Global-Series CW fiber lasers provide broad configuration choices, QBH output connection, multiple control modes, good compatibility, and reliable cutting performance.
German Beckhoff IPC-based control can be selected for scalable computing power, flexible industrial PC configuration, and TwinCAT-ready automation architecture.
Upgrade to Precitec laser cutting heads for stable 2D cutting, high cutting speed, excellent cut edge quality, intelligent sensor support, and user-friendly maintenance.
Yaskawa servo upgrades for the X and Y axes support responsive motion control, higher machine speed potential, and reliable drive performance for repeated cutting jobs.
Automatic loading equipment arranges tubes before feeding and uses loading rollers to reduce waiting time for higher cutting efficiency.
Specifications
Tub Plus Cut enclosed plate and tube machine dimensions and shared laser configuration options at a glance
Ready to
Master Your
Production?
Share your sheet size, tube range, material type, thickness range, and production goals. Our engineering team will recommend a Tub Plus Cut configuration for your workshop.
